JAN micro-vibration perimeter alarm system is new-type intrusion detection, alarm and positioning device designed elaborately by our company for security protection of high-end perimeters.
Product Introduction
JAN micro-vibration perimeter alarm system is new-type intrusion detection, alarm and positioning device designed elaborately by our company for security protection of high-end perimeters.
Product Features:
◇Its sensor is connected via one cable and arranged in cable shape; sensing, communication and positioning are highly integrated into one cable and no extra power supply is required.
◇Positioning accuracy is high with few errors and accuracy value can be set through system platform.
◇ Special sensor vibration sensing cable is adopted as potential-free detector, suitable for inflammable, explosive and high-risk places.
◇ Sensor detector integrates environment analysis & adaptive mode, and efficient calculating and processing module is adopted to improve the processing and analysis speed and accuracy of alarm data, thus false alarm rate can be reduced effectively.
◇It has such advantages as long protection distance, easy construction, simple debugging, few maintenance work and long service life.

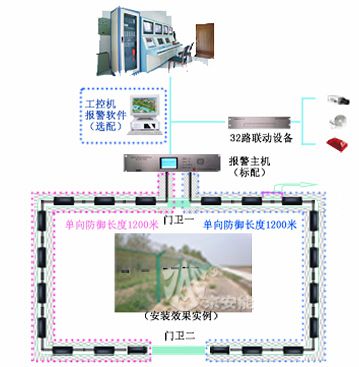

System Structure Diagram:
System Configuration:
Management Terminal: micro-vibration signal processing host (color LCD touch screen with independent automatic control management system), JAN perimeter alarm system software.
Detection Terminal: micro-vibration sensing detector (including positioning cable)
Main Parameters:
Working voltage: AC220V
System power consumption: 5W
Rate of missing report:
Crossing wall by human body ＜1%, attached to wall ＜0.5%
Rate of false alarm: < 2%
Interface type: LAN, RS485
Protection grade: IP67
Positioning accuracy: 1-8m optional
Lightning protection grade:
Second-level lightning protection IEC51000-4-5 standard
Applicable Places:
JAN micro-vibration perimeter alarm system is suitable for complex places with higher accuracy level requirements.
