Fiber Optic Collector is the core equipment of the system. It’s designed as blade structure and placed inside the monitoring and control room. The equipment is used for the acquisition and preprocessing signal of Defense Zones and uploads the signal to platform software through the network. Meanwhile the equipment can indicate the equipment power supply condition and operating condition by LED light.
Fiber Optic Collector is the core equipment of the system. It’s designed as blade structure and placed inside the monitoring and control room. The equipment is used for the acquisition and preprocessing signal of Defense Zones and uploads the signal to platform software through the network. Meanwhile the equipment can indicate the equipment power supply condition and operating condition by LED light.

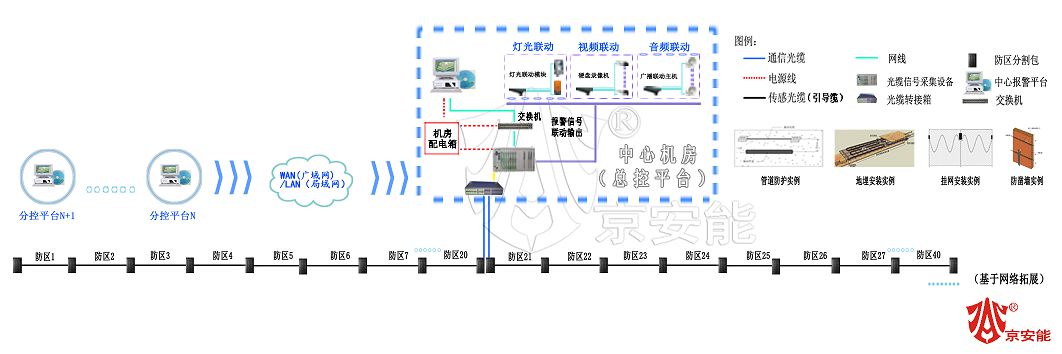

System Structure Diagram:
System Configuration:
Detection Terminal: JAN-VOC-S40, JAN-VOC-2500，fiber optic vibration cable.
Main Parameters:
Chassis: 16-slot 19-inch 4U rack, aluminum alloy shell.
Peak power consumption: 10W at maximum
Number of defense areas: 40 defense areas for single device at maximum
Length of defense area: 2km fiber optic cable at maximum in single defense area
Farthest distance: 80km
Detection sensitivity: 10m/s2
It’s applicable to various complex terrain environments and long distance place. It can be applied to flammable and explosive areas and placed with strong electromagnetic interference such as liquefied gas plants, LNG filling stations, dangerous goods warehouse, military goods warehouse, etc. It can also be applied to protect key facilities and areas such as guarding electric power facilities against theft, preventing oil and natural gas pipelines from damage, perimeter protection of high-speed railways, cultural museums, Olympic villages and airport and borderline intrusion prevention. Meanwhile, it can also be used for ordinary perimeter areas in replacement of traditional protection measures, such as perimeters of waterworks, residential quarters, private villas, etc.
